Termékleírás

Méretek

If you require a multicore cable D-Sub 25 pin male to XLR 3-pin female which is compatible with the analog Tascam DSUB25 specification (DA 88) you should turn to our CFD DFT cable. The metal housing of the connectors is nickel-plated. The corresponding bulk cable is the CMD 8, which transmits analog as well as […]

Cikkszám: COR-10475 Kategóriák: Cordial kábelek, Csoport és speciális kábelek

Leírás+

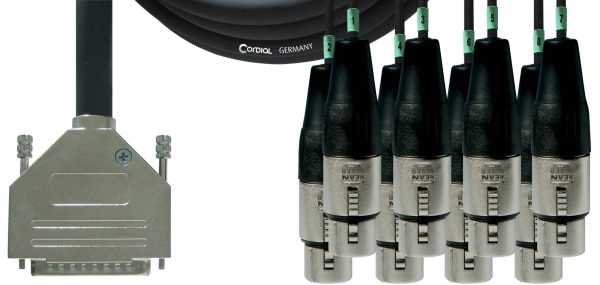

If you require a multicore cable D-Sub 25 pin male to XLR 3-pin female which is compatible with the analog Tascam DSUB25 specification (DA 88) you should turn to our CFD DFT cable.

The metal housing of the connectors is nickel-plated. The corresponding bulk cable is the CMD 8, which transmits analog as well as DMX signals excellently and features spiral tinned copper shields and an additional tinned overall shield.

További információk+

EAN	4250197634946
Brand	Cordial
cable	CMD 8
cable assign	DFT
connector brand	REAN SILVER
plugs	<div>1 D-Sub</div> <div>8 XLR female 3-pole</div>
Conductor area	0.14 mm²
AWG	AWG 26
Composition of conductor	18 x 0.10
Material	tinned copper
Conductor resistance	140 Ohm/km
Shielding	tinned copper braided screen
Capacity cond.-cond. (pF/m)	45 pF / m
category	DMX-AES/EBU-110 Ohm
diameter	12.5 mm
weight	178 g/m
