CPH 5 DMX 1 PWR 1 TRUE 1

Name: CPH 5 DMX 1 PWR 1 TRUE 1
SKU: COR-13934
Price: 26141 HUF
Availability: InStock

33.200 Ft

Szállítási költségek

Add elements inside. Lorem ipsum dolor sit amet consectetur adipisicing elit. Dignissimos sequi placeat distinctio dolor, amet magnam voluptatibus eos ex vero, sunt veritatis esse. Nostrum voluptatum et repudiandae vel sed, explicabo in?

Engedélyezett utánrendelésre

Termékleírás

Méretek

The stageworthy hybrid solution CPH DMX 1 PWR 1 TRUE1 combines a mains line and a DMX cable. The 3 x 1.5mm2 power cable and a balanced AES/EBU line ensure an optimal power supply for stage and studio use. The cable features a NEUTRIK PowerCon TRUE 1 connector which boasts 3 important characteristics for professional […]

Cikkszám: COR-13934 Kategóriák: Cordial kábelek, DMX kábelek

Leírás+

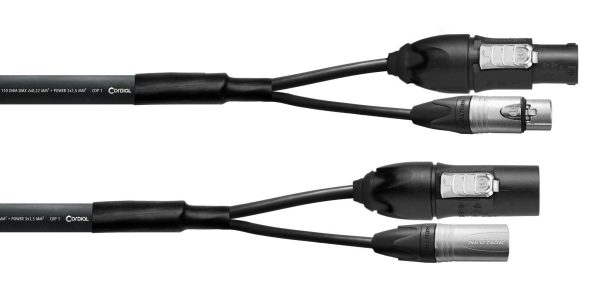

The stageworthy hybrid solution CPH DMX 1 PWR 1 TRUE1 combines a mains line and a DMX cable. The 3 x 1.5mm² power cable and a balanced AES/EBU line ensure an optimal power supply for stage and studio use.

The cable features a NEUTRIK PowerCon TRUE 1 connector which boasts 3 important characteristics for professional use: it is lockable, loadable up to 16 amps with 230V and can be connected and disconnected under load.

The split of the cable is 30 cm.

További információk+

EAN	4250197647380
Brand	Cordial

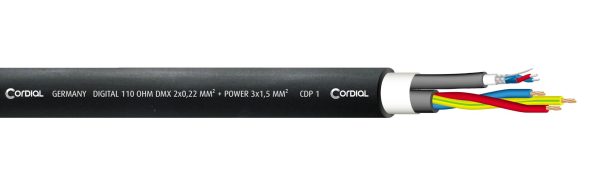

cable	CDP 1
cable assign	CPH_DMX1 PWR1
connector brand	REAN

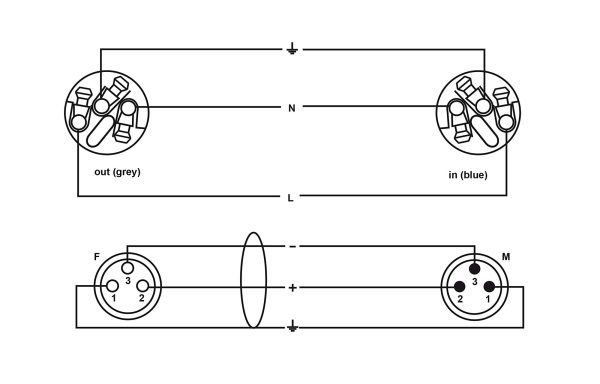

plugs	<div>1 XLR female 3-pole</div> <div>1 PowerCON TRUE1 TOP female</div> <div>1 XLR male 3-pole</div> <div>1 PowerCON TRUE1 TOP female</div>
Conductor area	0.22mm² / 1.50 mm²
AWG	AWG 24 / AWG 16
Composition of conductor	7 x 0.20 mm / 30 x 0.245 mm
Material	tinned copper / bare copper
Conductor resistance	85 Ohm/km (0.22mm²)
Shielding	AL foil + tinned copper braided screen
Capacity cond.-cond. (pF/m)	40 pF/m
category	Hybrid
diameter	15.1 mm
weight	266 g/m
Conductor isolation	PE
